SERIE INTEGRAL

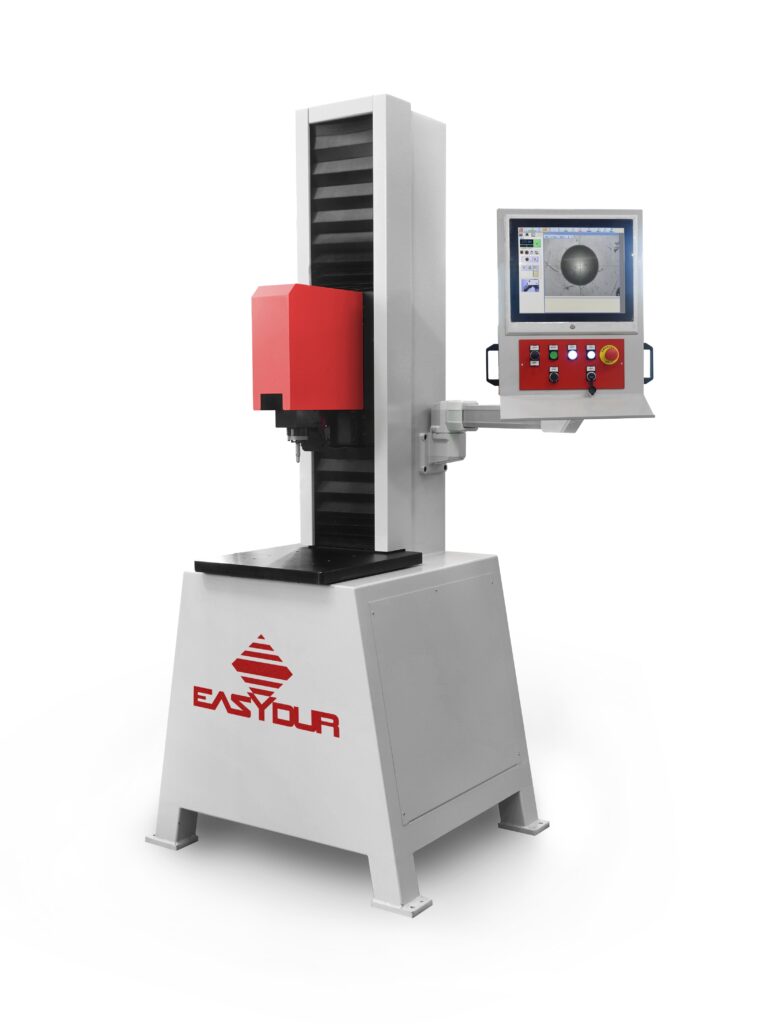

Universal hardness tester for automatic Brinell, Vickers, Rockwell, Superficial Rockwell, Shore and CHD test methods in compliance with ASTM and ISO hardness standards. Integral is a top level bench hardness tester for fully automatic test cycles. It is entirely motorized and equipped with an automatic turret with indenters and magnification lenses for indent auto-reading after indentation. This multifunctional turret allows multiple tests in different hardness scales with just one tester, without the need to change indenters or lenses when changing hardness method. Load forces are applied through load cells and electronically controlled in Closed Loop (Pat. Affri). The exact hardness result on the first test and R&R data are at the top of its class, absolute accuracy (better than 0.5 %) in every condition. Integral 1 has a large fixed base and a motorized head with long vertical stroke. Wide touchscreen and a user friendly interface for ease in test planning and a clear view of results. Statistics and diagrams are automatically generated and can be stored with test sessions in the large archive. Hardness tests on all metals: iron, steel, tempered steel, cast iron, brass, aluminum, copper and metal alloys. Heat treatment, hardening, nitriding, cementation and hardfacing. Hard and soft plastics.

KEY-FACTS

  • Test loads: from 1 to 3000 kgf (from 9,807 to 29421 N)
  • Brinell ISO 6506 / ASTM E-10: HBW1/1 - HBW1/2,5 - HBW1/5 - HBW1/10 - HBW1/30 - HBW2,5/6,25 - HBW2,5/15,625 - HBW2,5/31,25 - HBW2,5/62,5 - HBW2,5/187,5 - HBW5/25 - HRW5/62,5 - HBW5/125 - HBW5/250 - HBW5/750 - HBW10/100 - HBW10/250 - HBW10/500 - HBW10/1000 - HBW10/1500 - HBW10/3000
  • Vickers ISO 6507 / ASTM E-384: HV1 - HV3 - HV5 - HV10 - HV15 - HV20 - HV30 - HV60 - HV100
  • Rockwell ISO 6508 / ASTM E-18: HRA - HRB - HRC - HRD - HRG - HRL - HRM - HRR - HRS - HRX - HRZ / HRN - HRT

Technical Features

INTEGRAL 2
INTEGRAL 3
INTEGRAL 5
Standards DIN-EN-ISO 2039 / DIN-EN-ISO 7619 / DIN-EN-ISO 868 / DIN-EN-ISO 6506 / DIN-EN-ISO 6507 / DIN-EN-ISO 6508 / DIN-EN-ISO 4545 / ASTM E-384 / ASTM E-18 / ASTM E-10 / JIS B 7734
X/Y Table
(Standard) 400 x 400 mm
(On request) Motorized – 200×100 mm with 0,01 mm step
Vertical head stroke 0/500 mm Motorized
Depth capacity 170 mm (More on request)
Indent reading Autofocus and auto-reading
Test loads Brinell: 9.807 – 49.03 – 98.07 – 147.1 – 153.2 – 294.2 – 306.5 – 612.9 – 1226 – 1839 – 2452 N (1 – 5 – 10 – 15 – 15.6 – 30 – 31.2 – 62.5 – 125 – 187.5 – 250 kgf)

Vickers: 9.807 – 19.60 – 29.42 – 49.03 – 98.07 – 147.1 – 294.2 – 490.3 – 980.7 N
(1 – 2 – 3 – 5 – 10 – 15 – 30 – 50 – 100 kgf)

Rockwell: 588.4 – 980.7 – 1471 N (60 – 100 – 150 kgf)

Superficial Rockwell: 147.1 – 294.2 – 441.3 N
(15 – 30 – 45 kgf)

Optional loads: 49 – 132 – 358 – 961 N (60 – 100 – 150 kgf – For plastics and rubber as per EN-ISO 2039 std)

Brinell: 29.42 – 49.03 – 98.07 – 153.2 – 306.5 – 612.9 – 1226 – 1839 – 2452 – 4903 – 7335 – 9807 N (3 – 5 – 10 – 15.6 – 31.2 – 62.5 – 125 – 187.5 – 250 – 500 – 750 – 1000 kgf)

Vickers: 29.42 – 49.03 – 98.07 – 147.1 – 294.2 – 490.3 – 980.7 – 1176.8 N
(3 – 5 – 10 – 15 – 30 – 50 – 100 – 120 kgf)

Rockwell: 588.4 – 980.7 – 1471 N (60 – 100 – 150 kgf)

Superficial Rockwell: 147.1 – 294.2 – 441.3 N
(15 – 30 – 45 kgf)

Optional loads: 49 – 132 – 358 – 961 N (60 – 100 – 150 kgf – For plastics and rubbers as per EN-ISO 2039 std)

Brinell: 98.07 – 294.2 – 306.5 – 612.9 – 1226 – 1839 – 2452 – 4903 – 7335 – 9807 – 29421 N (10 – 30 – 31.2 – 62.5 – 125 – 187.5 – 250 – 500 – 750 – 1000 – 3000 kgf)

Vickers: 98.07 – 147.1 – 294.2 – 490.3 – 980.7 – 1176.8 N (10 – 15 – 30 – 50 – 100 – 120 kgf)

Rockwell: 588.4 – 980.7 – 1471 N (60 – 100 – 150 kgf)

Optional loads: 49 – 132 – 358 – 961 N (60 – 100 – 150 kgf – For plastics and rubber as per EN-ISO 2039 std)

Feasible tests Brinell: HBW1/1 – HBW1/2.5 – HBW1/5 – HBW1/10 – HBW1/30 – HBW2.5/6.25 – HBW2.5/15.625 – HBW2.5/31.25 – HBW2.5/62.5 – HBW2.5/187.5 – HBW5/25 – HRW5/62.5 – HBW5/125 – HBW5/250 – HBW5/750 – HBW10/100 – HBW10/250 – HBW10/500 – HBW10/1000 – HBW10/1500 – HBW10/3000

Vickers: HV1 – HV3 – HV5 – HV10 – HV15 – HV20 – HV30 – HV60 – HV100

Rockwell: HRA – HRB – HRC – HRD – HRG – HRL – HRM – HRR – HRS – HRX – HRZ – HRN – HRT

Shore: A – B – C – D

HDTL: Case Depth Automatico HV 525 – 550 – 600 – 650 (More on request)

Accuracy Better than 0,1 %

INTEGRAL REVOLVER


FULLY AUTOMATIC TEST CYCLE


The hardness tester’s head moves down until contact is made, clamps the piece, applies the force and makes the indentation. The software will move to the camera view mode where the indent is automatically measured.

CLOSED LOOP (PAT. AFFRI)


Load forces are applied through load cells and electronically controlled in “Closed Loop” with a frequency of 1 khz, assuring perfect linearity in every range. Results are not affected by any structural deflection, misalignment, vibration or problems associated with dead weight systems on traditional testers.

REPEATABILITY AND REPRODUCIBILITY


When testing unstable samples or deflective parts, the AFFRI System will follow the sample without losing contact. Accurate measurements on the first test, even in extreme conditions, eliminate the need for multiple repeated tests. The R&R data is at the top of its class.

MOTORIZED HEAD


Automatic movements with automatic stop when contact is made. Till 500 mm of motorized vertical stroke. The approach of the head to the peace and not the opposite allows more accurate, scable and safe measurements.

CLAMPING SYSTEM (PAT. AFFRI)


Secure contact with the specimen is always mantained, even in the unlikely event of any specimen movement during the operation cycle. The clamping system assures perfect stability of any test piece throughout the test cycle, even if it’s oiled, rusty or dirty.

WIDE WORKHOLDER


A working table that supports masses beyond 3000 kg and special fixtures or anvils permits steady hardness measurements on bulky and irregular test pieces which cannot be easily reached by the regular bench hardness testers. It also offers a comfortable working base for small pieces.

MOTORIZED TURRET


Up to 7 slots for different hardness scales indenters, different zoom optics and even a milling surface preparation tool. Auto-rotating and auto-tool-switching for a complete automatic measurement cycle. For single or multi hardness test methods using only one tester.

MOTORIZED X/Y TABLE


For automatic multi-indentation measurement cycles. The user can program and set the number of indents to be performed and the related movement of the X/Y table before each indent.

AUTO-FOCUS


The Auto Focus performs an automatic focus adjustment for the selected optic with precise positioning at any magnification. This system reduce reading time thus assures high reading accuracy.

REMOTE SUPPORT


The remote controll connects the AFFRI hardness tester from anywere in the world with AFFRI’s engineers. Our experts can remotely diagnose any technical issues, provide additional operator training and update software version.

SOFTWARE INTEGRAL
