Hardness tester Used Machines UNIVERSAL HARDNESS TESTING MACHINE DIA TESTOR 2 RC

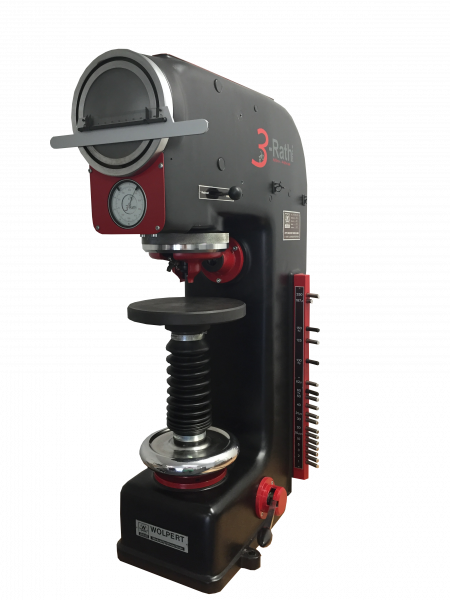

UNIVERSAL HARDNESS TESTING MACHINE DIA TESTOR 2 RC


Robust and reliable!

Manufacturer: Otto Wolpert-Werke GmbH
Type: Dia Testor 2 Rc

KEY-FACTS

  • Test load range: 1kg – 250kg
  • Vickers: HV1 / HV2 / HV3 / HV5 / HV10 / HV20 / HV30 / HV50 / HV125
  • Brinell: HBW 1/5 ; 1/10 ; 1/30 HBW 2,5/15,625 ; 2,5/31,25 ; 2,5/62,5 ; 2,5/187,5 HBW 5/62,5 ; 5/125 ; 5/250

Extent of delivery:


– Hardness testing device
– Vertical illuminator
– Threaded spindle with hand wheel
– Illumination equipment
– Lenses 70X & 140X
– Standards 70X & 140X
– Diamond indenter 136° Vickers
– Diamond cone 120° Rockwell
– Ball holder with ball Ø2.5 mm Brinell
– Test table, level Ø230 mm
– Prism mounting Ø80 mm
– Power cable
– Operating instructions

Optional


– Brinell-Vickers-Mess-System (Software / Box)
– Brinell-Vickers-Meas-System (Software / Box)
– Table 3R-800K
– Diamond indenter 136° with DKD-certificate
– Diamond cone 120° with DKD-certificate
– Ball holder with ball Ø25 mm with DKD-certificate
